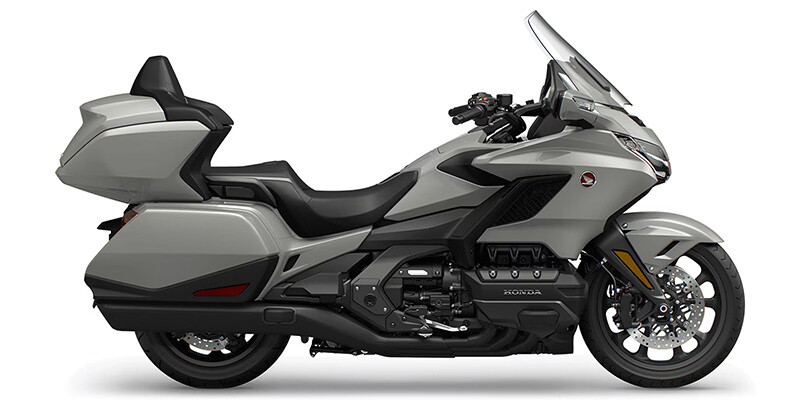

2026 Gold Wing^® Tour Automatic DCT

Specifications

• Engine & Drivetrain

  add remove
  • Engine Type
    Horizontally Opposed
  • Cylinders
    6
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    125
  • Torque (Ft Lbs)
    125.4
  • Torque (Nm)
    170
  • Cooling
    Liquid
  • Valves
    24
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    2.87
  • Stroke (in)
    2.87
  • Displacement (cc)
    1833
  • Carburetion Type
    Fuel Injected
  • Turbocharged
    No
  • Supercharged
    No
  • Number Of Carburetors
    0
  • Compression Ratio
    10.5:1
• TRANSMISSION

  add remove
  • Transmission Type
    Manual / Automatic Clutch
  • Number Of Speeds
    7
  • Primary Drive (Rear Wheel)
    Shaft
  • Overdrive
    Yes
  • Reverse
    Yes
  • Gear Ratio (1)
    2.17
  • Gear Ratio (2)
    1.69
  • Gear Ratio (3)
    1.3
  • Gear Ratio (4)
    1.04
  • Gear Ratio (5)
    0.82
  • Gear Ratio (6)
    0.66
• TECHNICAL SPECIFICATIONS

  add remove
  • Wheelbase (in)
    66.9
  • Fuel Capacity (gal)
    5.5
  • Storage Capacity (gal)
    25
  • Length (in)
    102.9
  • Width (in)
    35.6
  • Height (in)
    56.4
  • Ground Clearance (in)
    5.1
  • Wet Weight (lbs)
    847
• SUSPENSION

  add remove
  • Front Suspension Type
    Double-Wishbone
  • Front Travel (in)
    4.3
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Steering Damper
    No
  • Rear Suspension Type
    Single Sided Swing Arm
  • Rear Suspension Material
    Aluminum
  • Rear Travel (in)
    4.1
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    1
  • Rear Suspension Brand Name
    Pro Link®
  • Air Adjustable
    No
  • Front Suspension Brand Name
    Showa®
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Tube / Tubeless
    Tubeless
  • Front Tire (Full Spec)
    Bridgestone® Exedra G852: 130/70-18 63H
  • Rear Tire (Full Spec)
    Bridgestone® Exedra G853: 200/55 R16 77H
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    12.6
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    12.4
  • Anti-Lock Brakes
    Standard
  • Linked Brake System Front to Rear
    Standard
  • Brake Brand Name
    Nissin
• Colour options

  add remove
  • Deep Pearl Gray
  • Candy Ardent Red
  • Metallic Black
