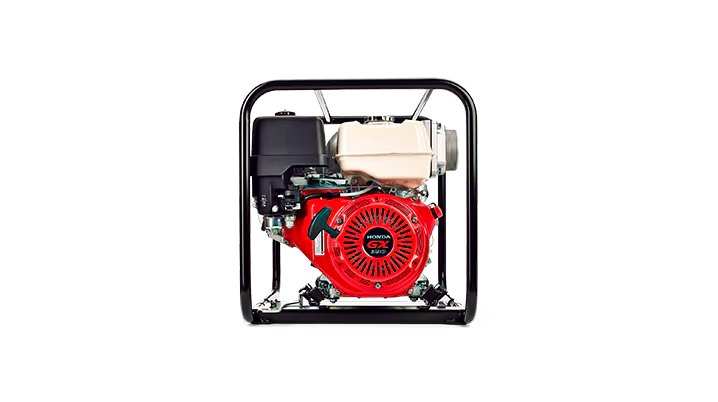

A 100 mm (4 in) pump capable of pumping water containing rocks and debris at 1,640 litres per minute.
| Water Pump Type: | Trash |
| Pump: | Centrifugal |
| Type: | Self-priming |
| Suction Port Diameter: | 100 mm (4 in.) |
| Discharge Port Diameter: | 100 mm (4 in.) |
| Litres Per Minute: | 1,640 |
| Imp. Gal. Per Minute: | 361 |
| Litres Per Hour: | 98,400 |
| Imp. Gal. Per Hour: | 21,660 |
| Total Head: | 27 m (89 ft.) |
| Suction Head (Total Lift.): | 8 m (26 ft.) |
| Priming Time @ 5 m (16.4 ft.): | 150 seconds |
| Pump Body: | Aluminum |
| Impeller: | Conical cast iron |
| Drive Unit Type: | Direct coupled / mechanical seal |
| Frame Type: | Full frame |
| Engine Type: | Honda GX390T2, 4-stroke, OHV, single cylinder |
| Displacement: | 389 cc (23.7 CID) |
| Lubrication System: | Forced spray |
| Governor: | Mechanical centrifugal |
| Starting System: | Recoil starter |
| Fuel Tank Capacity: | 6.1 L (1.34 Imp. gal.) |
| Oil Alert: | Standard |
